HAAS EC300 CNC Horizontal Machining Center 2-Pallet Year 2008 CAT40 EC-300 Local Pickup

Location: Oxnard, California

Availability: Immediate Sale

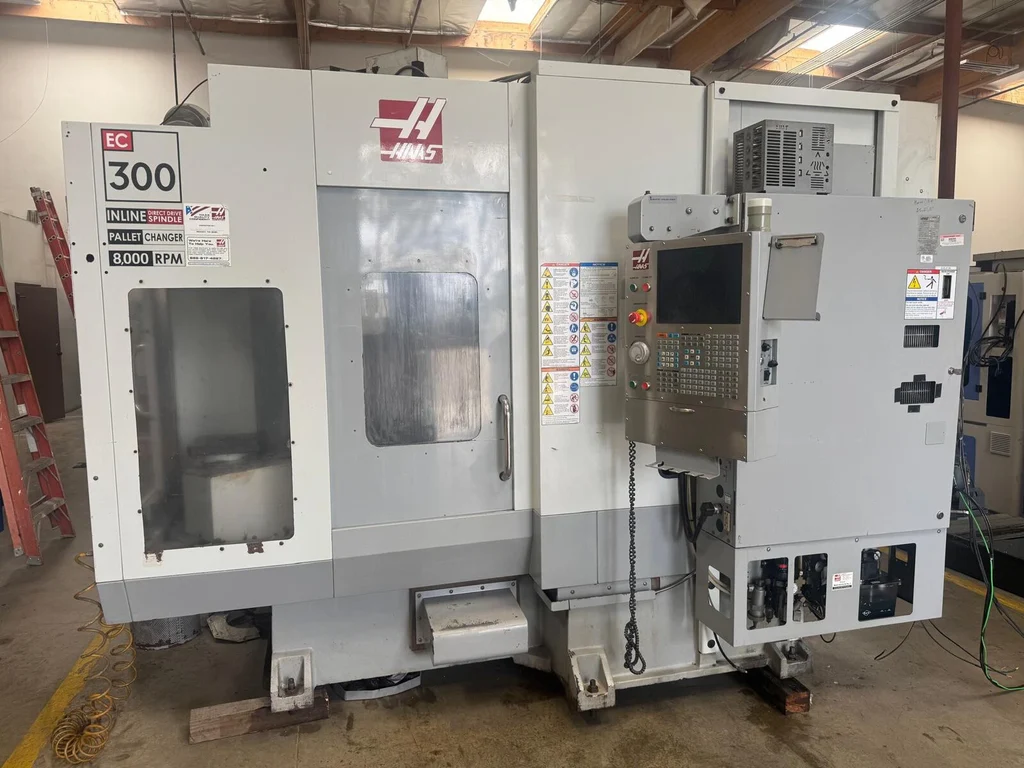

Increase production efficiency with this 2008 HAAS EC-300 CNC Horizontal Machining Center equipped with a 2-Pallet Automatic Pallet Changer. The EC-300 is designed for high-volume machining and lights-out operation, allowing one pallet to be loaded while the other is being machined. With a rigid horizontal spindle layout, excellent chip evacuation, and reliable CAT40 tooling, this machine is ideal for continuous production and multi-side part machining.

MACHINE OVERVIEW The HAAS EC-300 delivers high productivity with a compact horizontal footprint. The integrated pallet changer reduces downtime between cycles, while the powerful spindle and rigid construction allow aggressive cutting across a variety of materials including aluminum, steel, and alloy components.

PRODUCTIVITY FEATURES: 2-Pallet Automatic Pallet Changer enables continuous production with minimal idle time. Horizontal Spindle Design improves chip evacuation and tool life. Large Work Envelope accommodates multi-fixture setups. Reliable CAT40 Tooling with fast automatic tool changes supports high-volume machining environments.

TECHNICAL SPECIFICATIONS
Model: HAAS EC-300
Year: 2008
Type: CNC Horizontal Machining Center
Travels (X / Y / Z): 30″ x 20″ x 20″
Pallet Size: 12.6″ x 12.6″ (320 mm x 320 mm)
Pallet Capacity: 750 lbs per pallet
Spindle Speed: 8,100 RPM
Spindle Motor: 30 HP
Spindle Taper: CAT 40
Tool Changer: 24 Station Automatic Tool Changer
Rapid Rates (X/Y/Z): 1,200 IPM
Max Cutting Feed Rate: 650 IPM

PERFORMANCE & PHYSICALS
Pallet System: Dual Pallet Automatic Pallet Changer
Max Part Swing: Approx. 18″
Max Part Height: Approx. 20″
Tool Change Speed: ~2.8s Tool-to-Tool | ~4.2s Chip-to-Chip
Machine Dimensions: Approx. 124″ x 100″ x 108″
Machine Weight: Approx. 14,000 lbs
Power Requirement: 208-230V, 3-Phase

Note: Tool holders and fixturing are not included. Buyer should verify facility power requirements and ensure adequate floor load capacity prior to installation.
